OEM#: D1121New OEM Original Outright

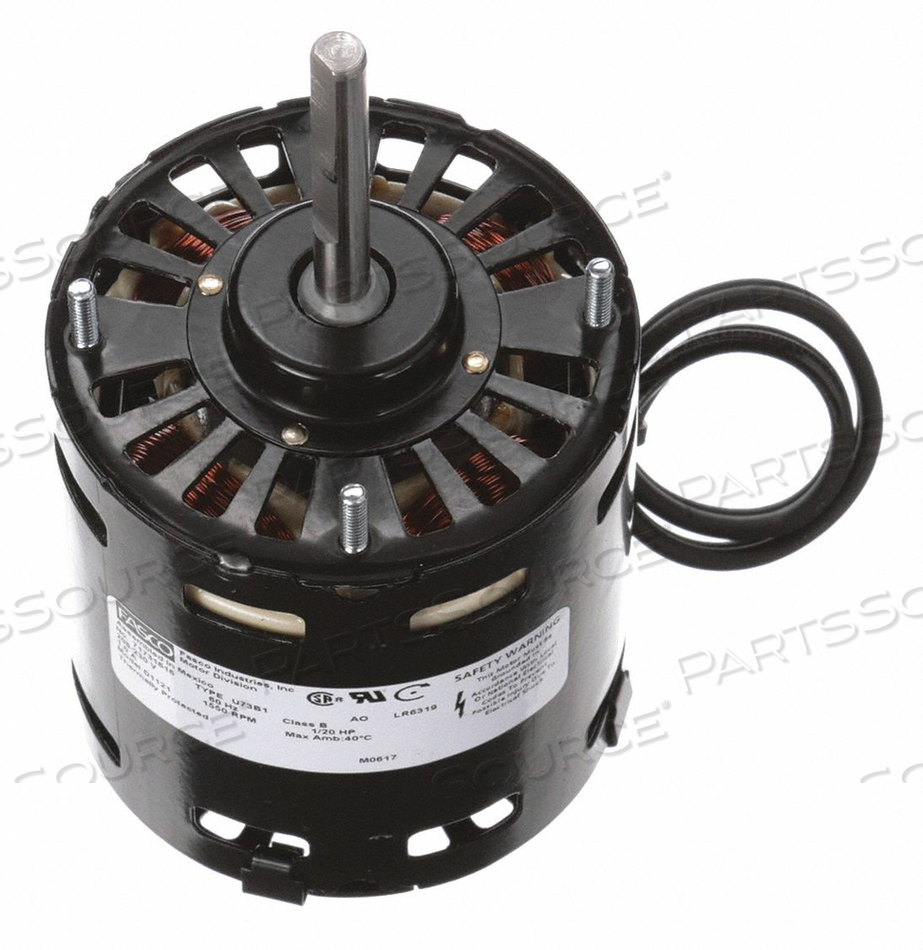

CONDENSER FAN MOTOR 1/20HP STUD 208-230V by Fasco
Your price:
$161.60 each
OEM#: D1121CONDENSER FAN MOTOR 1/20HP STUD 208-230V by Fasco
New OEM Original Outright
Your price:
$161.60 each
Asset Information
Are you an existing customer? Sign in to access your account.
ADD TO LIST
Technical Specs
P/N: D1121 Key Specs
Item
CONDENSER FAN MOTOR 1/20HP STUD 208-230V
OEM
Fasco
OEM #
D1121
Condition
New OEM Original
Returnable
No
Warranty
Mfr Warranty
Application
Fans and Blowers
Body Diameter
3-19/64 in
Bolt Circle Diameter
2-13/16 in
Capacitor Required
No
Frame
Non-Standard
Full Load Amps
1
HP
1/20
Hz
60
Ins. Class
B
Length Less Shaft
3-1/2 in
Max Ambient Temperature
40 Degrees C
Motor Application
OEM Replacement
Motor Bearings
Sleeve
Motor Design
Shaded Pole
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Stud
Motor Service Factor
1
Motor Shaft Design
Flat
Motor Shaft Rotation
CWSE
Motor Sub Application
Condenser Fan
Motor Thermal Protection
Auto
Mounting Stud Pattern
4 x 4 in
Nameplate RPM
1550
Number of Shafts
1
Number of Speeds
1
OEM Replacement Brand
Keeprite
Overall Length
6 in
Phase
1
Replacement For
1043766
Shaft Diameter
5/16 in
Shaft Length
2-1/2 in
Stud Size
8-32 X 1/2 in
Voltage
208-230
